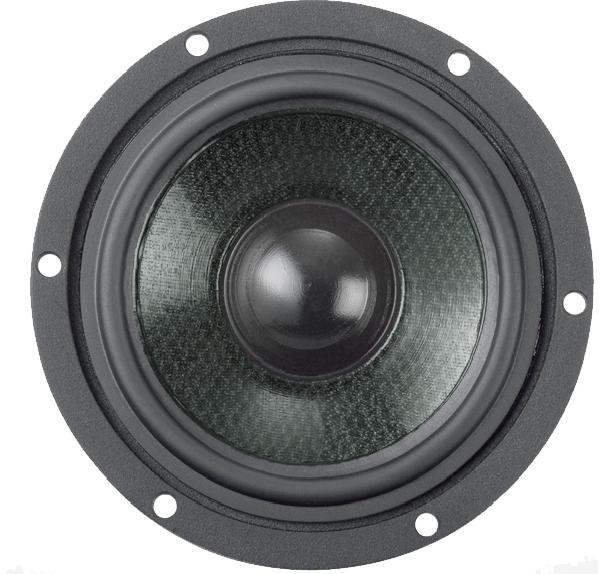

ETON 4-202/C8/25 HEX

Цена: 8 340 Руб. Нет в наличии

Nominal impedance Zn 8 Ω

DC resistance Re 6.0 Ω

Resonance frequency 1 W fr 77 Hz

Resonance frequency TSP fr 95 Hz

Suspension compliance CMS 0.487 mm/N

Mechanical Q factor QMS 5.2

Electrical Q factor QES 0.52

Total Q factor QTS 0.47

Equivalent air volume of suspension VAS 2.0dm3

Mech. resistance RMS 0.67 kg/s

Total moving mass (incl. air mass) MMD 5.9 g

Effective piston area SD 55 cm2

Voice coil-Ø 25 mm

Voice coil former Kapton

Voice coil lenght 10 mm

Voice coil layers 2

Voice coil inductance LE 0.4 mH

Flux density B 1.15 Tesla

Force factor BLxI 6.3 Tm

Height of gap 6 mm

Voice coil-Ø 90 mm

Height of magnet 17 mm

Mass of speaker 1.2 kg

Characteristic sound pressure level SPL 1 W / 1 m 88 dB

Rated power 40 W

Frequency range 100 -5400 Hz

Basket material Aluminium diecast

Cone material Hexacone
