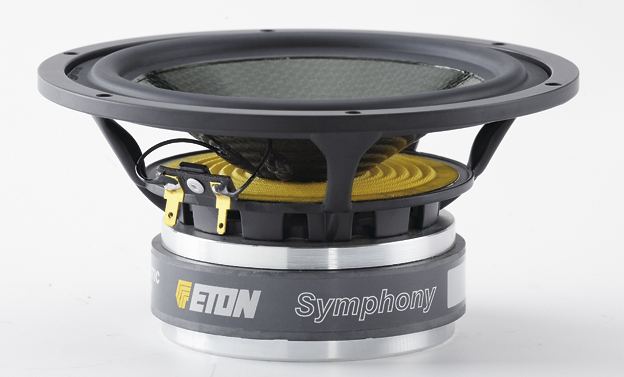

ETON 7-202/C8/32 HEX

Цена: 12 320 Руб. Нет в наличии

Nominal impedance Zn 8 Ω

DC resistance Re 6.6 Ω

Resonance frequency 1 W fr 31 Hz

Resonance frequency TSP fr 38 Hz

Suspension compliance CMS 0.98 mm/N

Mechanical Q factor QMS 5.61

Electrical Q factor QES 0.34

Total Q factor QTS 0.32

Equivalent air volume of suspension VAS 26 dm3

Mech. resistance RMS 0.75 kg/s

Total moving mass (incl. air mass) MMD 17.5 g

Effective piston area SD 137 cm2

Voice coil-Ø 32 mm

Voice coil former Kapton

Voice coil lenght 17 mm

Voice coil layers 1

Voice coil inductance LE 0.95 mH

Flux density B 1.0 Tesla

Force factor BLxI 9.0 Tm

Height of gap 8 mm

Voice coil-Ø 102 mm

Height of magnet 22 mm

Mass of speaker 1.94 kg

Characteristic sound pressure level SPL 1 W / 1 m 89 dB

Rated power 80 W

Frequency range 50 - 3000 Hz

Basket material Aluminium diecast

Cone material Hexacone
